Oil seals: Application



Rotational / Circumferential speed

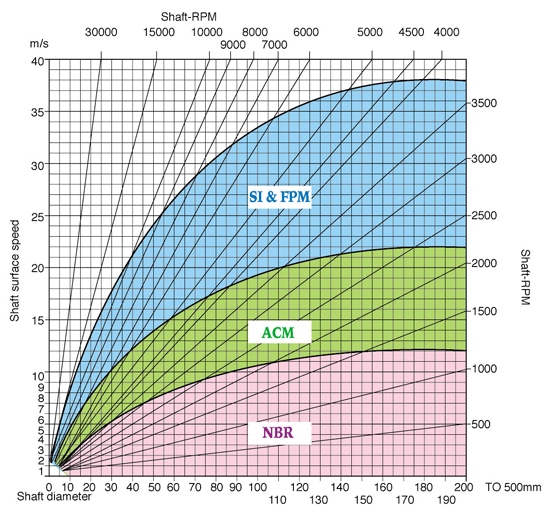

The maximum permissible rotational speed in a zero-pressure working mode can be obtained from the diagram below. This diagram is also a helpful source for information when selecting the most appropriate rubber for a given application depending on the working conditions.  The table below gives the guideline values for seals under pressure depending on the rotational and circumferential speed.

Permissible speed for seals under pressure:

Pressure differential

Shaft
 bar/max Maximum permissible rotational speed [r/min] Maximum circumferential speed [m/s]
0,50 1000 2,80
0,35 2000 3,15
0,20  3000 5,60

Permissible speed for seals where no pressure differential exists:
